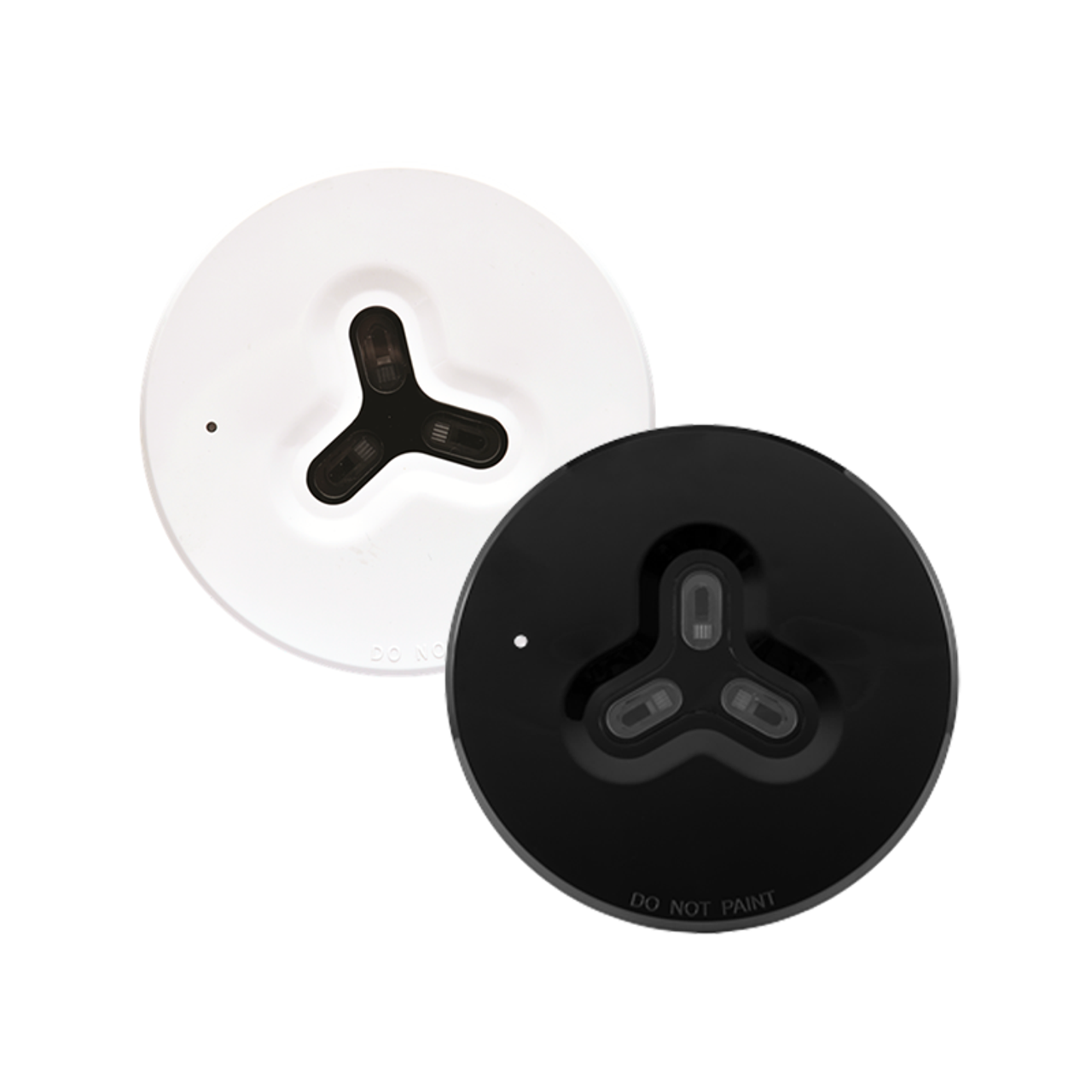

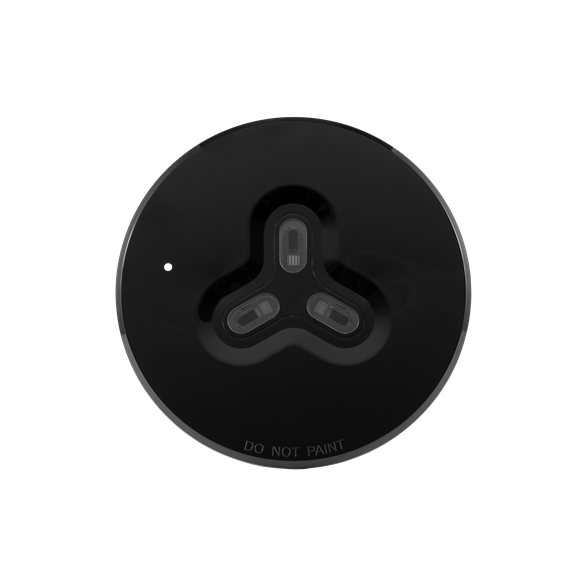

The innovative design of the Soteria Dimension Optical Detector differs from standard fire detectors, having no chamber and being flush-mounted.
New optical sensing technology is used to detect smoke particles outside the detector housing.
A combination of Infra-Red (IR) LEDs and photo-diodes identifies smoke particles detected just below the detector housing and initiates an alarm.
- Low profile design.
- Integrated switchable isolator as standard.
- 8-Way DIL switching addressing.
- Drift compensation.
- FastTest for quick testing.
- Tricoloured LED status indicator.
- Polycarbonate moulding for colour stability and strength.
- Locking mechanism (grub screw).
Approvals: AS 7240-7.
